Top Industrial Strainers Manufacturers in UAE

Industrial Strainers

Description

Butt Weld/Socket Weld

• SW Ends: 0.5″ (15mm) to 2″+ (50mm+)
• BW Ends: 0.5″ (15mm) to 14″+ (350mm+)
• Various forged and cast materials of construction
• Maximum pressure ratings API 10,000lb
• Wide range of screening materials available

Flanged

• Sizes: 0.5″ (15mm) to 20″+ (500mm+)
• Flanged Ends: ANSI, BS4504, DIN, BS10, JIS
• Various forged and cast materials of construction
• Maximum pressure ratings API 10,000lb
• Wide range of screening materials available

Screwed

• Sizes: 0.5″ (15mm) to 2″+ (50mm+)
• Screwed Ends: API, BSP, NPT
• Various forged and cast materials of construction
• Maximum pressure ratings ANSI Class 1500lb
• Wide range of screening materials available

Fabrication Y

• Sizes: 0.5″ (15mm) to 30″+ (750mm+)
• Flanged Ends: ANSI, BS4504, DIN, BS10, JIS
• BW Ends: Sched 40 to Sch 100 + Special Sched
• Materials: Carbon Steel, Low-Temperature Steel, S/S, Duplex S/S Alloy Steel or other materials available
• Maximum pressure rating class 2500lb+ (172 BarG+)

Fabrication PTFE Lined

• Sizes: 0.5″ (15mm) to 30″+ (750mm+)
• Flanged Ends: ANSI, BS4504, DIN, BS10, JIS
• Materials: Carbon Steel, Low Temperature Steel, S/S, Duplex S/S Alloy Steel or other materials available
• Maximum pressure rating class 2500lb+ (172 BarG+)

Conical Strainers

Conical

• Sizes: 0.5″ (15mm) to 30″+ (750mm+)
• Materials: Various S/S, Monel, Duplex, Carbon
• Maximum pressure rating class 2500lb+ (172 BarG+)

High Pressure

• Sizes: 0.5″ (15mm) to 30″+ (750mm+)
• Materials: Various S/S, Monel, Duplex, Carbon
• Maximum pressure rating class 2500lb+ (172 BarG+)

Witches Hat

• Sizes: 0.5″ (15mm) to 30″+ (750mm+)
• Materials: Various S/S, Monel, Duplex, Carbon
• Maximum pressure rating class 2500lb+ (172 BarG+)

Wedge Wire

• Sizes: 0.5″ (15mm) to 30″+ (750mm+)
• Materials: Various S/S, Monel, Duplex, Carbon
• Maximum pressure rating class 2500lb+ (172 BarG+)

Basket Strainers

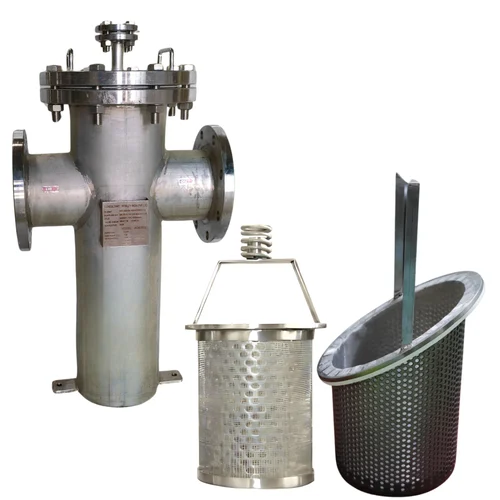

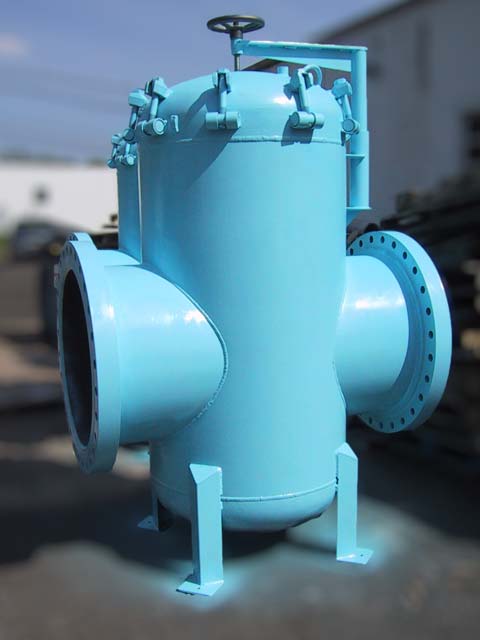

Basket Strainers – Single/Sloping/Multi

• Sizes: 0.5″ (15mm) to 78″+ (1980mm+)
• Flanged Ends: ANSI, BS4504, DIN, BS10, JIS
• BW Ends: from Sched 40 to Sch 100 + Special Sched
• Materials: Carbon Steel, Low Temperature Steel, S/S, Duplex S/S Alloy Steel or other materials available
• Maximum pressure rating class 2500lb+ (172 BarG+)

Materials

Strainers, filters, and pressure vessels are designed to meet the specific requirements of a given application. The choice or selection of materials is not only limited to the body of the unit but also the complementary components. These materials include but are not limited to:

Body Construction

• Carbon Steels
• Low-Temperature Carbon Steels
• Copper Alloys
• Gunmetal
• Aluminium Bronze
• Stainless Steels
• Duplex Stainless Steels
• Super Duplex Stainless Steels
• Alloy Steels
• High Alloy Steels
• Nickel Alloys
• Other Exotic Alloys available

Internal Construction (Basket/Element/Screen/Tray)

• Carbon Steel
• Aluminium
• Brass
• Carpenter20*
• Copper
• Gold
• 304, 304L, 316, 316L, 321, 347, 410, 430
• Monel*
• 6Mo
• Duplex
• Super Duplex
• Titanium
• Alloy20
• Hastelloy* 'B', 'C' and 'X'
• Inconel* 600, 601, 625, 718
• Molybdenum
• Nichrome*
• Nickel 200, 205, 270
• Waspalloy*

Gaskets, Bolting, Washers, O-Rings, Coatings, Linings, Insulation, Jackets, Connections

Any commercially available materials can be used to construct any strainer, filter, internal component, or pressure vessel.

Available Materials

• Carbon Steel
• Low-Temperature Carbon Steel
• Stainless Steel
• Austenitic Stainless Steels
• Monel & Inconel*
• Hastelloy
• Titanium
• Other on request

Manufacturers

EATON, HAYWARD, etc.
