Handling Tools & Power Tongs

High-performance casing, tubing, and drill pipe handling solutions for oilfield operations

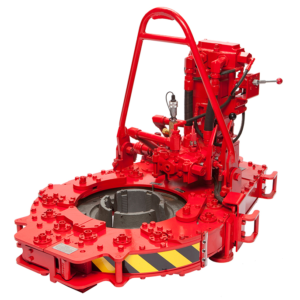

CASING TONGS

Heavy-duty hydraulic casing tongs designed for high torque applications in oilfield drilling. Built for durability and precision, these tools ensure safe and efficient make-up and break-out of casing connections.

Maximum Size (in)	Minimum Size (in)	Maximum Torque (ft-lb)	Maximum Speed (rpm)	Torque Arm (in)	Weight (lbs)	B/U Torque Arm (in)	B/U Weight (lbs)
5-1/2"	2-1/16"	15000	100	26	850	24	650
7-5/8"	2-1/16"	17000	97	28	1050	24	725
9-5/8"	3-1/2"	22000	83	30	1075	24	690
13-5/8"	3-1/2"	25000	75	32	1175	38	925
17"	6-5/8"	30000	70	36	1800	—	1225
20"	7"	35000	57	42	2250	—	1525
24-1/2"	8-5/8"	40000	49	48	3550	—	1900

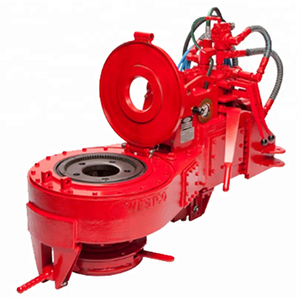

Tubing Tongs

Precision-engineered power tongs designed for drill pipe handling, offering high-speed performance and controlled torque for efficient operations.

Model	Maximum Size (in)	Minimum Size (in)	Maximum Torque (ft-lb)	Maximum Speed (rpm)	Torque Arm (in)	Weight (lbs)
500C	3-1/2"	1.05"	4500	125	29	470
RS	4-1/2"	1.05"	4650	100	39	625
RS-HT	4-1/2"	1.05"	6650	80	39	625
45000	4-3/4"	1.05"	6670	96	29	620
55000	4-3/4"	1.05"	8740	101	29	620
56000	4-3/4"	1.05"	11750	76	29	620
58-93R	7"	1-5/16"	6000	96	36	1000

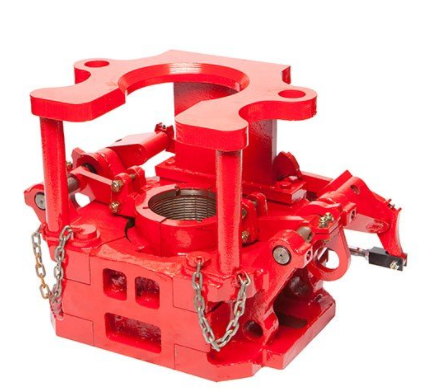

TUBING SPIDERS / SLIP BOWLS

Model	Actuation	Maximum Size (in)	Minimum Size (in)	Capacity (ton)	Weight (lbs)
G	Air	4-1/2"	1.66"	60	200
T-60	Air	4-1/2"	1.05"	60	200
TS 100 3.5	Manual	3-1/2"	1.05"	100	255
TS 100 5.5	Manual	5-1/2"	3-1/2"	100	325
B	Air/Hyd.	3-1/2"	1.315"	55	270
C	Air/Hyd.	5-1/2"	1.315"	82.5	440
CHD	Air/Hyd.	5-1/2"	1.315"	125	490
E	Air/Hyd.	7-5/8"	2-3/8"	175	965
F	Air/Hyd.	8-5/8"	2-3/8"	200	1365

Rotary Slip

Rotary Slips play a crucial role in Onshore and Offshore drilling operations by securely holding the tubular in the Rotary Table during specific operations. Depending on the type of tubular being handled, there are different slips available such as Drill Pipe Slips, Drill Collar Slips, Tubing Slips, and Casing Slips. Slip sizes and API specifications match the size of the tubular and the drill well’s depth for effective use.

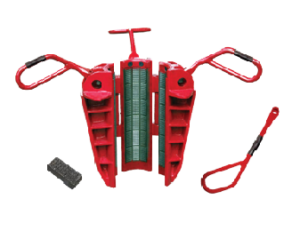

Part List of ABRS - RSST Short Rotary Slips (SDS)

Detailed specifications and part numbers for slip body sizes, pipe compatibility, and insert configurations.

Slip Body Size (Inches)	3-1/2			4-1/2
API Pipe Sizes (OD in Inches)	2.3/8	2.7/8	3.1/2	3.1/2	4	4.1/2
Slip Complete w/Insert Part No.	5101	5102	5103	5104	5105	5106
Weight Complete with Inserts	61 Kg.	59 Kg.	56 Kg.	73 Kg.	70 Kg.	66 Kg.
Insert Part No.	5160-24	5161-24	5162-24	5163-36	5164-36	5165-36

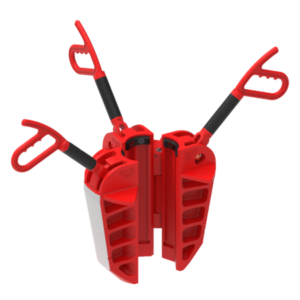

Part List of ABRS-RSMD Medium Rotary Slips (SDML)

Specifications and part details for medium rotary slips, including pipe sizes, insert configurations, and weights.

Slip Body Size (Inches)	3-1/2			4-1/2
API Pipe Sizes (OD in Inches)	2.3/8	2.7/8	3.1/2	3.1/2	4	4.1/2
Slip Complete w/Insert Part No.	5121	5122	5123	5124	5125	5126
Weight Complete with Inserts	84 Kg.	84 Kg.	81.5 Kg.	94 Kg.	91 Kg.	86 Kg.
Insert Part No.	5160-30	5161-30	5162-30	5163-45	5164-45	5165-45

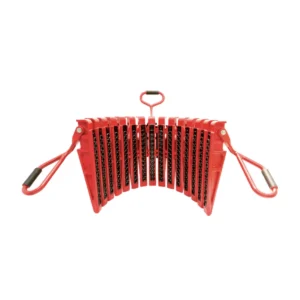

Part List of ABRS - RSLG Extra Long Rotary Slips (SDXL)

Specifications and part details for extra long rotary slips, including pipe sizes, insert configurations, and weights.

Slip Body Size (Inches)	4-1/2			5
API Pipe Sizes (OD in Inches)	3-1/2	4	4-1/2	4	4-1/2	5
Slip Complete w/Insert Part No.	5152	5153	5154	5155	5156	5157
Weight Complete with Inserts	104 Kg.	99 Kg.	93 Kg.	108 Kg.	103 Kg.	97 Kg.
Insert Part No.	5163-54	5164-54	5165-54	5168-54A	5166-54	5167-54

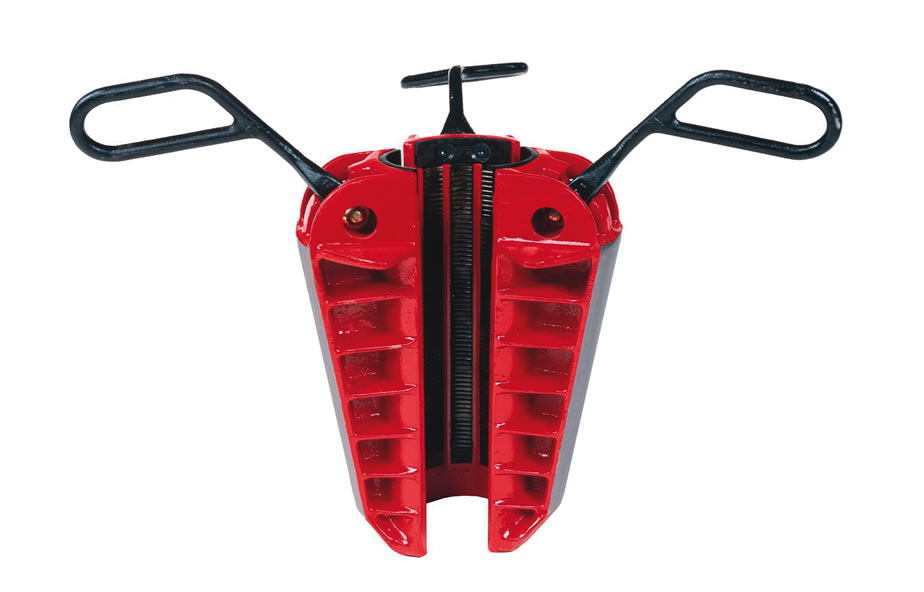

RHS - Rotary Slip

The RHS – Rotary Slip is designed to handle heavy-duty tasks and features a 161/2″ gripping length with an API taper of 4 inches per foot in diameter. This slip is primarily used to hold the drill pipe during insertion or extraction from the hole. It offers uniform load distribution, preventing bottleneck damage to the drill pipe. The slip’s body can be easily altered to accommodate different pipe sizes by changing out the inserts.

Rotary Slip Specifications

Slip Body Size (Inches)	To Handle Drill Pipe Size (Inches)	Insert Bowl	Load Rating (Ton)
5	4 – 5	Bowl No. 3	500
6	5 – 6	Bowl No. 3	675

Insert & Unit Details

Body Size (Inches)	Pipe Size (Inches)	Complete Unit Part No.	Insert Part No.	Qty of Inserts (Per Set)
5	5	75001	75124	24
	4.875	75002	75224	24
	4.75	75003	75324	24
	4.625	75004	75424	24
	4.5	75005	75524	24
	4.375	75006	75624	24
	4.25	75007	75724	24
	4.125	75008	75824	24
	4	75009	75924	24
6	6	76001	76124	24
	5.875	76002	76224	24
	5.75	76003	76324	24
	5.625	76004	76424	24
	5.5	76005	76524	24
	5.375	76006	76624	24
	5.25	76007	76724	24
	5.125	76008	76824	24
	5	76009	76924	24

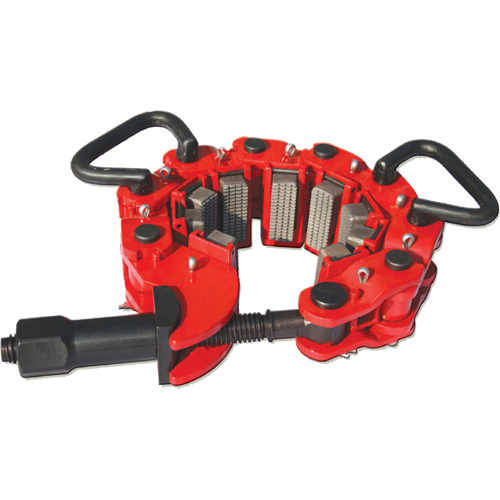

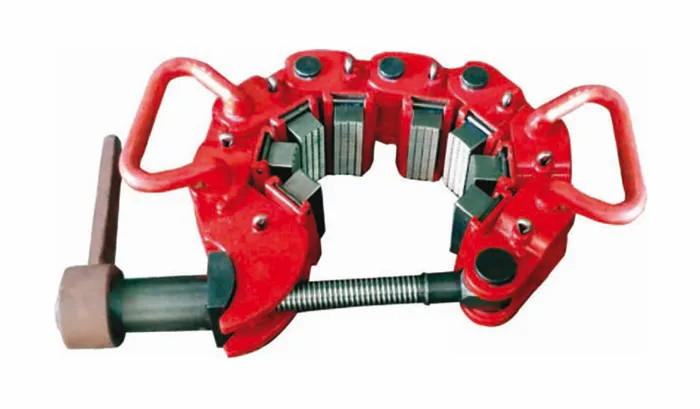

Safety Clamp

The Safety Clamp is a reliable and safe tool used during the installation of various types of tubular. This tool is manufactured using high-grade alloy steel that is hardened, tempered, and tested for controlled hardness with ultrasonic or magnetic particle testing. The clamp can be used for large diameter surface casing, drilling risers, casing heads, and lifting prepacked gravel liners. Additionally, the multi-link design provides even pressure around the pipe, reducing the risk of crushing or surface damage. Each link with a tapered slip is easy to interchange and can fit pipe diameters from 2.7/8″ to 36″.

ABSC-S / ABSC-R Casing Slip Specifications

Specifications and part details including size ranges, weights, links, and gripping dies.

Description	2.7/8" - 4.1/8"	4" - 5"	4½" - 5.5/8"	5½" - 7"	6¾" - 8¼"	8" - 9¼"	9¼" - 10½"
P/N Complete Set	6501	6502	6503	6504	6505	6506	6507
Weight in Kg.	37.5	41	37	40	44	47.5	51
Total Links	7	8	7	8	9	10	11
No. of Gripping Dies	8	9	8	9	10	11	12

ABSC-R (Extended Range)

Description	10½" - 11½"	11½" - 12½"	12½" - 13.5/8"	13.5/8" - 14.3/4"	14.3/4" - 15.7/8"
P/N Complete Set	6508	6509	6510	6511	6512
Weight in Kg.	55	58.5	62	66	69.9
Total Links	12	13	14	15	16
No. of Gripping Dies	13	14	15	16	17

ABSC-L / XL / XXL

Description	15.7/8" - 17"	17" - 18½"	18½" - 19.3/8"	19.3/8" - 20.3/8"	20.3/8" - 21½"	21" - 22.5/8"
P/N Complete Set	6513	6514	6515	6516	6517	6518
Weight in Kg.	78.5	82	86	89	92.5	96
Total Links	17	18	19	19	20	21
No. of Gripping Dies	18	19	20	20	21	22

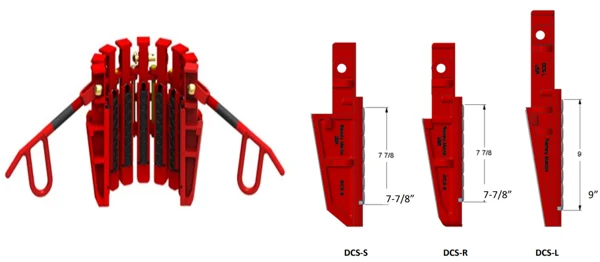

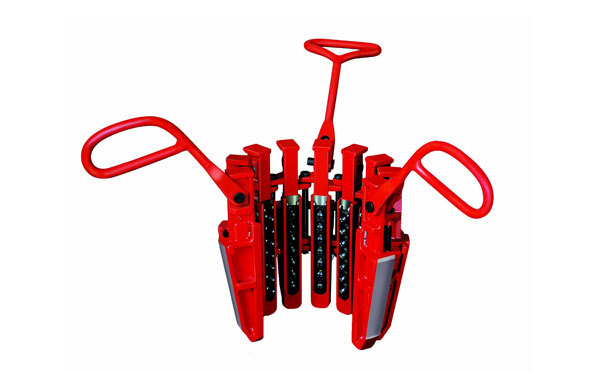

Drill Collar Slip

The Drill Collar Slips are segmented slips designed to handle drill collars during the running process. They aid in centering the pipes in the rotary table while protecting the drill collars from damage. These slips conform to the API-7K specification and feature an API taper of 4 inches per foot in diameter. They come with circular buttons, and the handles are available in either flexible or standard formats.

Slip Type, Size and Range (OD, inches)

Specifications and part details for slip types, including size ranges, weights, and component configurations.

Description	3-4	4-4.7/8	4.1/2-6	5.1/2-7	6.3/4-8.1/4
P/N, Slip Complete w/Circular Buttons	5201	5202	5203	5204	5205
Weight Complete with Inserts	47 Kg.	47 Kg.	54 Kg.	51 Kg.	70 Kg.
Total Number of Segments	7	7	9	9	11
Total Number of Hinge Pins	6	6	8	8	10
Insert Bowl	Bowl No. 3

Description	8-9.1/2	8.1/2-10	9.1/4-11.1/4*	11-12.3/4*	12-14*
P/N, Slip Complete w/Circular Buttons	5206	5207	5208	5209	5210
Weight Complete with Inserts	78 Kg.	84 Kg.	90 Kg.	96 Kg.	94 Kg.
Total Number of Segments	12	13	14	17	17
Total Number of Hinge Pins	11	12	13	16	16
Insert Bowl	Bowl No. 3	Bowl No. 2	Bowl No. 2	Bowl No. 1	Bowl No. 1

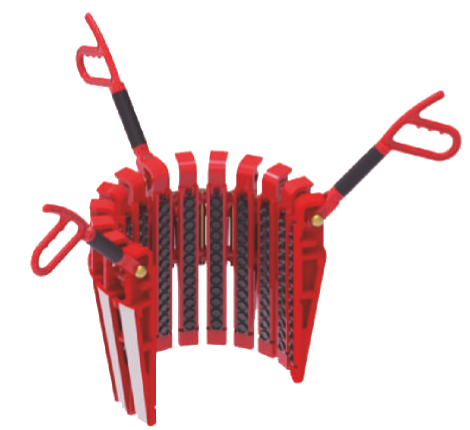

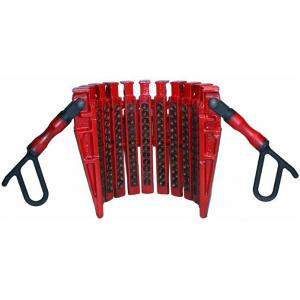

Casing Slip

Casing Slips are dynamic and flexible multi-segment slips specifically designed for casing pipe operations. Their carefully crafted construction enables pipes to self-center within the rotary table, ensuring a secure grip without risking damage. These slips come with multiple segments, which can be easily adjusted to adapt to casing pipes ranging from 5 to 30 inches in outer diameter. Simply choose the correct number of slip segments and inserts to prepare the slip for your casing.

Casing Size (OD, inches)

Specifications and part details for casing sizes, including slip part numbers, weights, and configuration data.

Description	5	5½	6-5/8	7	7-5/8	8-5/8	9	9-5/8*
P/N, Slip Complete w/Circular Buttons	5300	5300A	5301	5302	5303	5304	5304A	5305
Weight Complete with Inserts	89 Kg.	88 Kg.	89 Kg.	84 Kg.	76 Kg.	83 Kg.	88 Kg.	88 Kg.
Total Number of Segments	11	11	12	12	12	13	14	14
Total Number of Hinge Pins	10	10	11	11	11	12	13	13

Description	9.7/8 & 10*	10.3/4*	11.3/4*	12.3/4*	13.3/8*	14*	16*	16.3/4*
P/N, Slip Complete w/Circular Buttons	5305A	5306	5307	5307A	5308	5308A	5309	5309A
Weight Complete with Inserts	107 Kg.	95 Kg.	118 Kg.	129 Kg.	112 Kg.	153 Kg.	140 Kg.	173 Kg.
Total Number of Segments	14	15	17	17	18	19	21	22
Total Number of Hinge Pins	13	14	16	16	17	18	20	21

Description	18*	18.5/8*	20*	22*	24*	26*	28*	30*
P/N, Slip Complete w/Circular Buttons	5309B	5310	5311	5311A	5312	5313	5313A	5314
Weight Complete with Inserts	199 Kg.	167 Kg.	175 Kg.	205 Kg.	202 Kg.	228 Kg.	249 Kg.	249 Kg.
Total Number of Segments	25	25	26	28	30	33	37	37
Total Number of Hinge Pins	24	24	25	27	29	32	36	36
